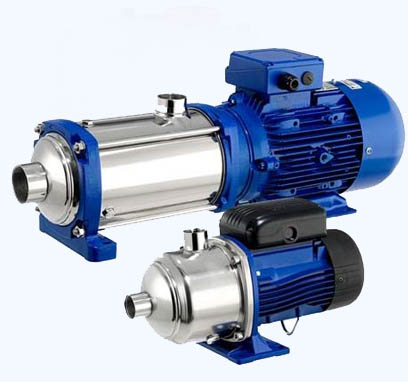

The e-HM™ series could be installed either in machines where compactness and high performances are a must or within industrial processes where the user looks for a reliable modular design with a restricted vertical footprint. The e-HM™ series offers as well a wide range of standard options to fit every single requirement coming from the industry. The different material and configuration available allow e-HM™ series working with a wide range of liquid temperature starting -30°C to +120°C.
The e-HM™ are highly modular pumps that are fitted with an innovative hydraulic design that secures high efficiency performances and an increased Mean Time Between Failure.
The e-HM™ are available in two different configurations:
The “Compact” design is made of one single piece fabricated stainless steel pump body directly connected to the motor flange. The “Compact” has only one O-ring for the sealing of the casing that clearly reduces the leakages possibilities.
The “Compact” design is made of one single piece fabricated stainless steel pump body directly connected to the motor flange. The “Compact” has only one O-ring for the sealing of the casing that clearly reduces the leakages possibilities.
The “Sleeve” design is made of an external stainless steel TIG welded sleeve and of separate suction casing kept together with the mean of an aluminum casted pump bracket and of stainless steel tie rods screwed in the motor flange.
The e-HM™ are equipped with surface motors designed and manufactured in accordance with EN standards. The e-HM™ series can be equipped as well with variable speed drivers such as the e-SM drive and the Hydrovar™.
